Connector 1 Way HX 040 Female Automotive Loom Plug A-5

£ 5.12

Connector HX  female 1 way black sealed plug. Used on some on Japanese motorcycle wiring harness and looms

Availability: 9 in stock

SKU: 1W-HX-FEM-CONN Category: Tags: , , , , , , , , , , , , , , , , Brand:

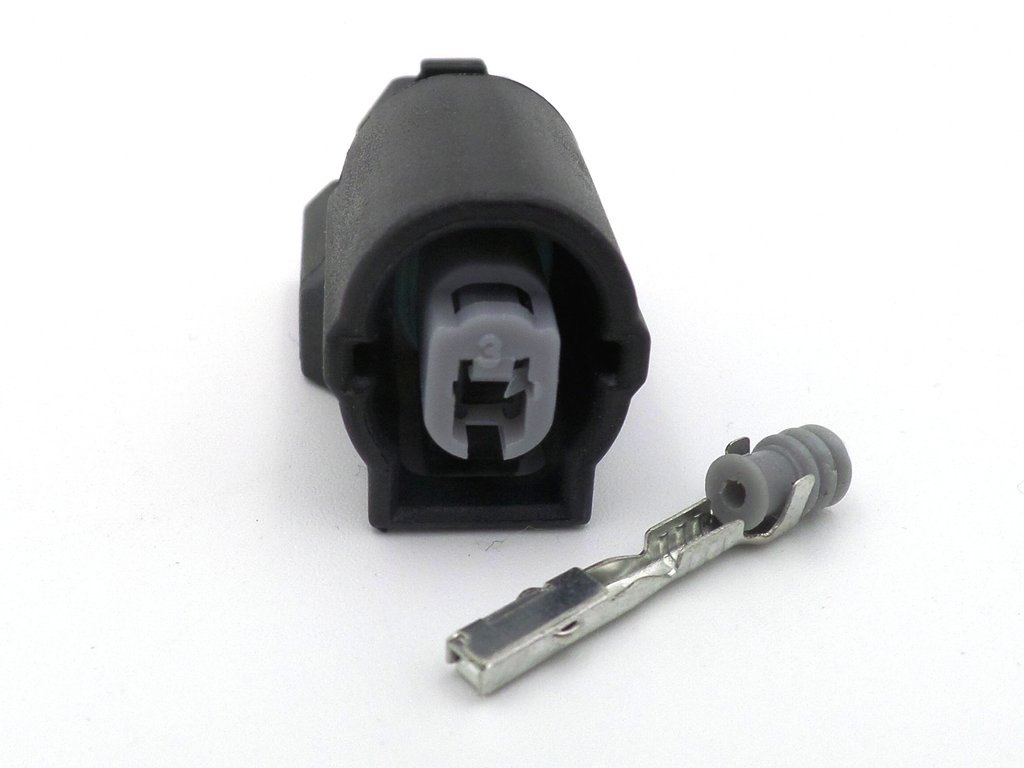

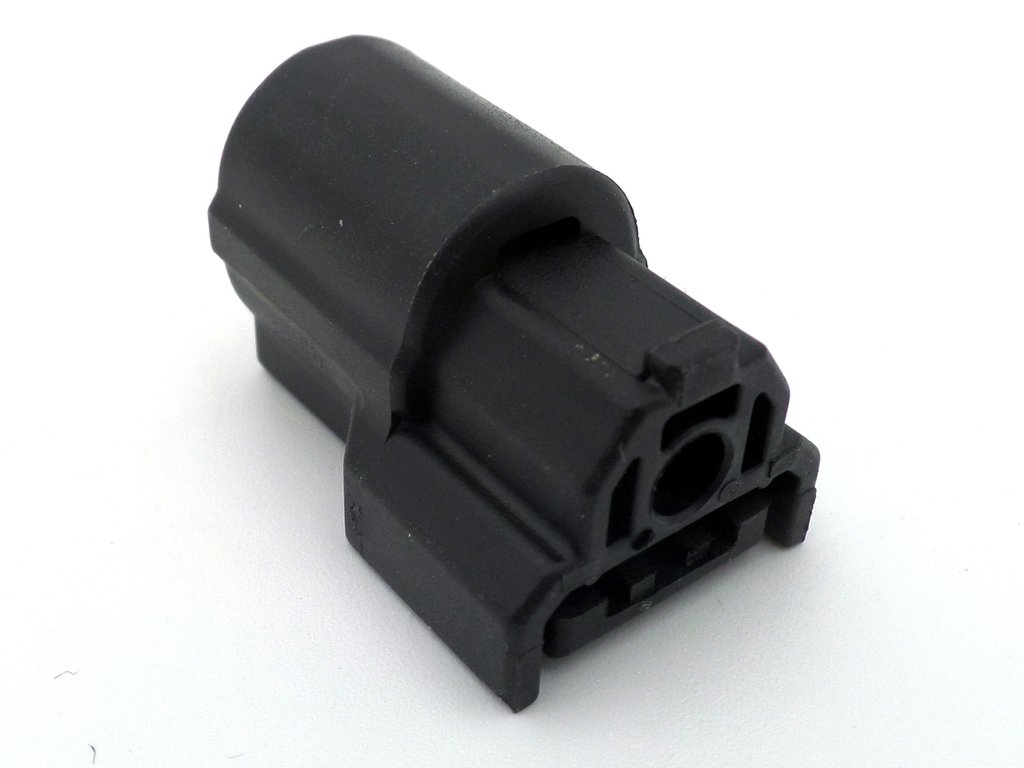

HX series 040 1 way female black sealed connector with grey terminal lock. Used on some  Japanese motorcycles and other automotive vehicles.

Can have cable pigtail added, see below:

Terminal Size

1.0mm2 (040)

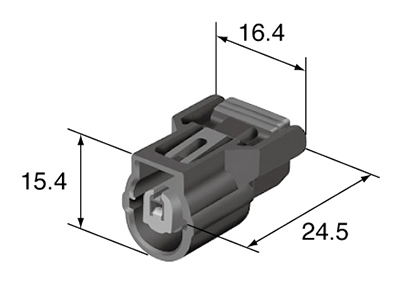

Connector Dimensions

Length:24.5mm  Width: 16.4mm Height: 15.4m

Mating Half: 1W-HX-Male-Conn

Add connector to the basket. Cable pigtail with your colour choices can then be added to this connector for a small charge from the list below. Please allow up to 48hrs for the crimping to be completed.

0.5mm 11 Amp 1.7mm O.D. Solid Colour Cable HERE

1mm 16.5 Amp 1.95mm O.D. Solid Colour Cable HERE,

1mm 16.5 Amp 1.95mm O.D Tracer Colour Cable HERE

Manufacturer:- Aftermarket

Weight 0.012 kg
