Connector 2 Way HM 090 Male Female Sealed Wiring Loom F-2

Connector 2 way HM 090 sealed male and female wiring loom plug supplied with terminals and seals.

Note:- The cable seal shown in the picture is for photographic purposes only. It will be supplied in either yellow, red or blue depending on what we have in stock at the time. They are all for the same cable size and terminal combination. If you have a preference then check with us the colours we have in stock before placing an order1, 6180-2451

Direct original replacement for the following manufacturer part numbers:

KTM :- 000700000FE, 000700000CK
Honda :- 07VPZ-002010A, 07VPZ-002040A

Terminal Size: 2.3mm

Spare Terminals: HM-HW-FEM/10PK

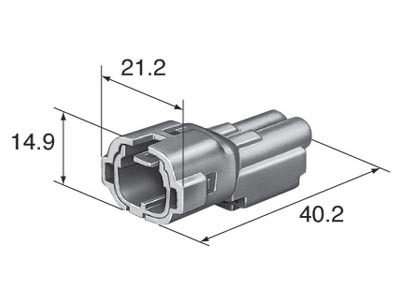

Male Housing

Length: 40.2mm

Width: 21.2mm

Height: 14.9mm

Number of Rows: 1

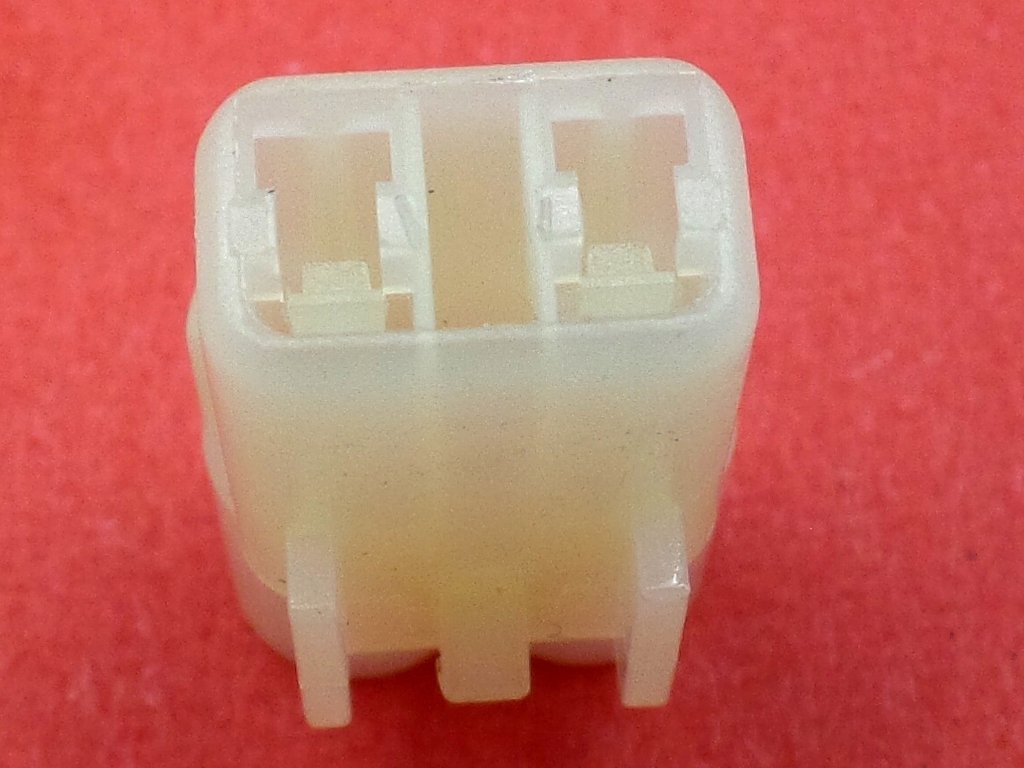

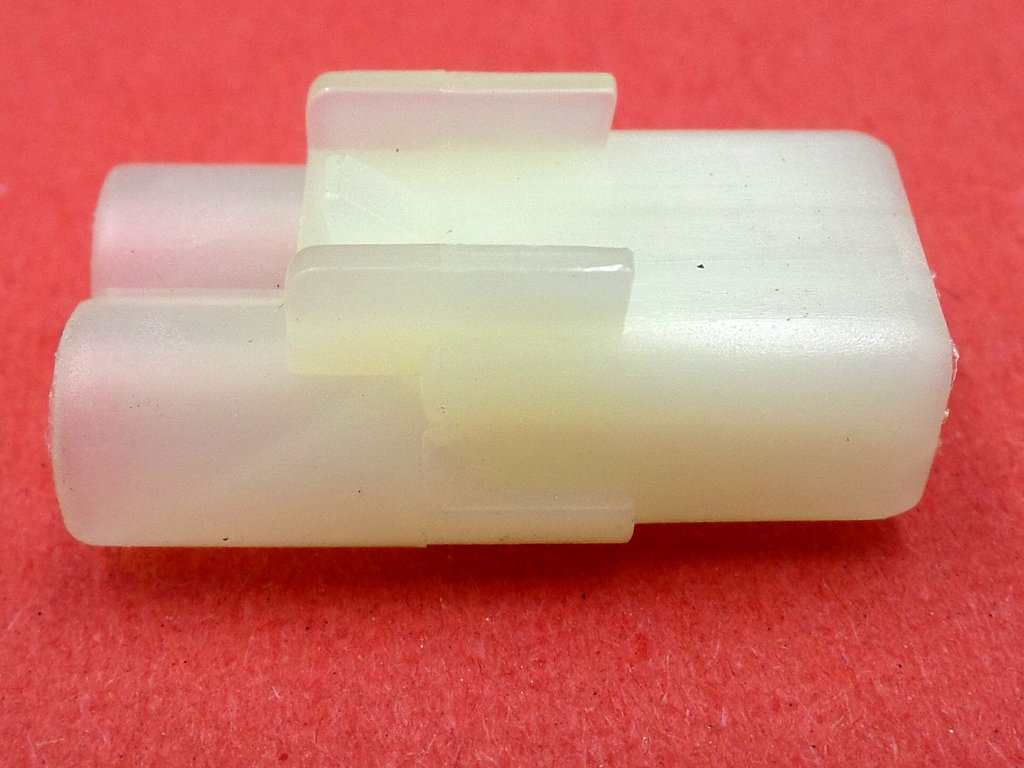

Female Housing

Length: 23mm

Width: 11.1mm

Height: 7.1mm

Number of Rows: 1

All measurements approx.
