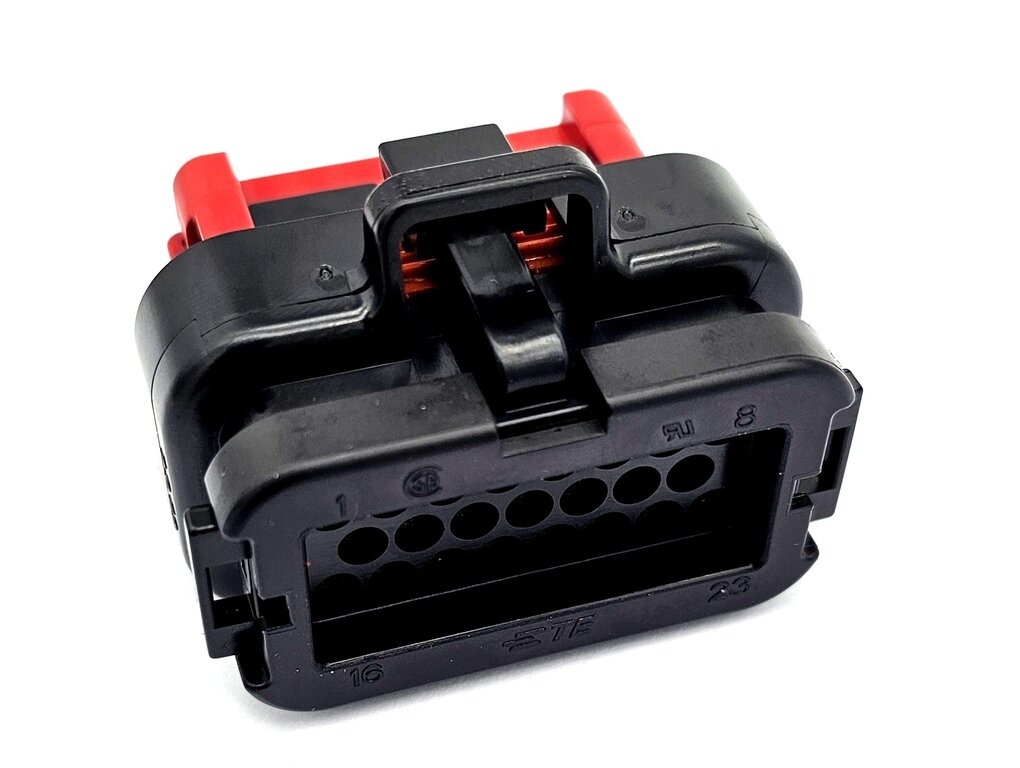

Connector 23 way Ampseal Black Female ECU Plug K-25

Connector 23 way black Ampseal wire to board / device sealed wiring loom harness plug rated at 17 amps per terminal. IP67 rated.
Made of PBT (UL94V-0) with silicone mating seal and wire seal. Housing colours are mechanically keyed to mate with identically coloured header assemblies. This wire-to-board/device plug assembly is suitable for use with AMPSEAL series socket contacts.

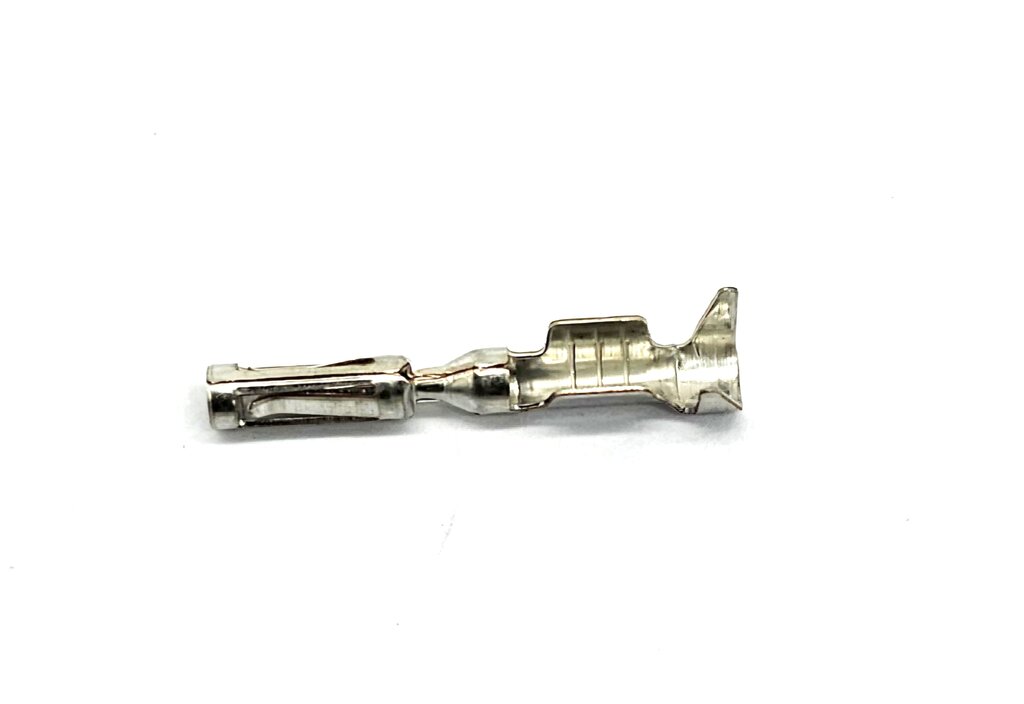

Terminals: 0.5mm2 to 1.5mm2
Connector dimensions:
Length: 39mm
Width: 47mm
Height: 27.5mm (34mm including lock)

23 way blue version available

23 way white version available

35 way black version available
