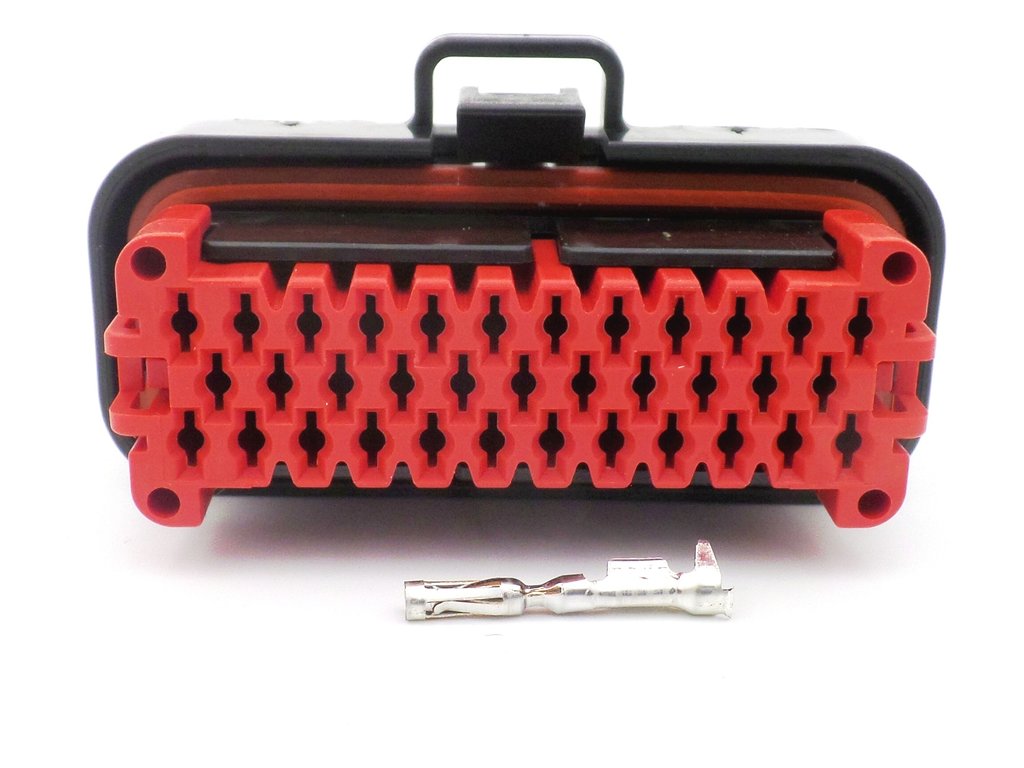

Connector 35 way 12v microsquirt black MS3Pro-Mini wire to board / device sealed wiring loom harness plug rated at 17 amps per terminal. IP67 rated.
Made of PBT (UL94V-0) with silicone mating seal and wire seal. Housing colours are mechanically keyed to mate with identically coloured header assemblies. This wire-to-board/device plug assembly is suitable for use with amp seal series socket contacts.
Terminals: 0.5mm2 to 1.5mm2
Connector dimensions:
Length: 63.4mm
Width: 33.6mm
Height: 34.6mm
Known Fitments:- Ecu’s from Motec, Haltech, Syvecs or AEM. Some transmission control units, and PDM’s from Racegrade, Cartek.
Mating Half: N/A
23 way black version available HERE
