Connector 6 Way Ducati KTM Sealed Wiring Harness Plug

Connector 6 Way Ducati KTM male and female Sealed Automotive Wiring Loom plug set..

Note:- The cable seal shown in the picture is for photographic purposes only. It will be supplied in either yellow, red or blue depending on what we have in stock at the time. They are all for the same cable size and terminal combination. If you have a preference then check with us the colours we have in stock before placing an order

Known Fitments:
Yamaha YZ600F-R6 06 -09 secondary injector harness (main harness)
Yamaha YZF600-R6 injector harness (sub-harness)
-MV Agusta F4-1000 secondary injectors
Ducati DTC on 1198S, Streetfighter S, 1199 Panigale

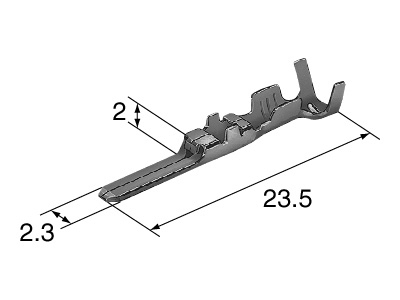

Terminal Size: 2.3mm

Spare Terminals: HM-HW-FEM/10PK

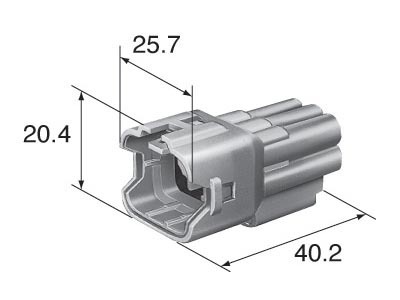

Male Housing

Length: 40mm

Width: 26mm

Height: 21mm

Number of Rows: 2

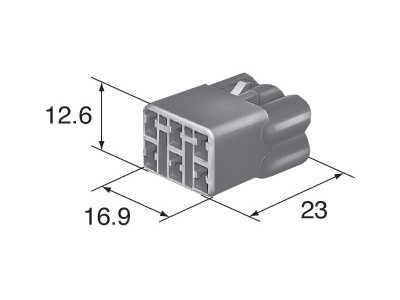

Female Housing

Length: 23mm

Width: 18.5mm

Height: 12.5mm

Number of Rows: 2

All measurements approx.
