Connector 6 Way Ford Land Rover MAF Sensor Wiring Loom K-5

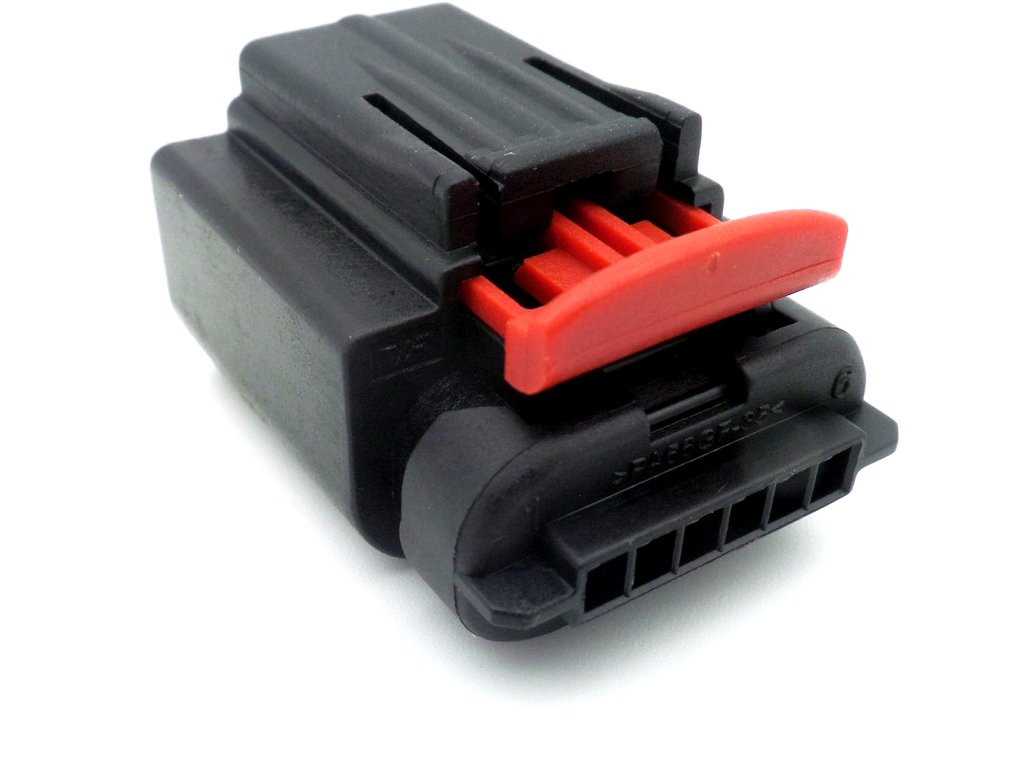

Connector 6 way wiring loom harness female plug supplied with terminals. Note this connector keyway slot to top right of connector.

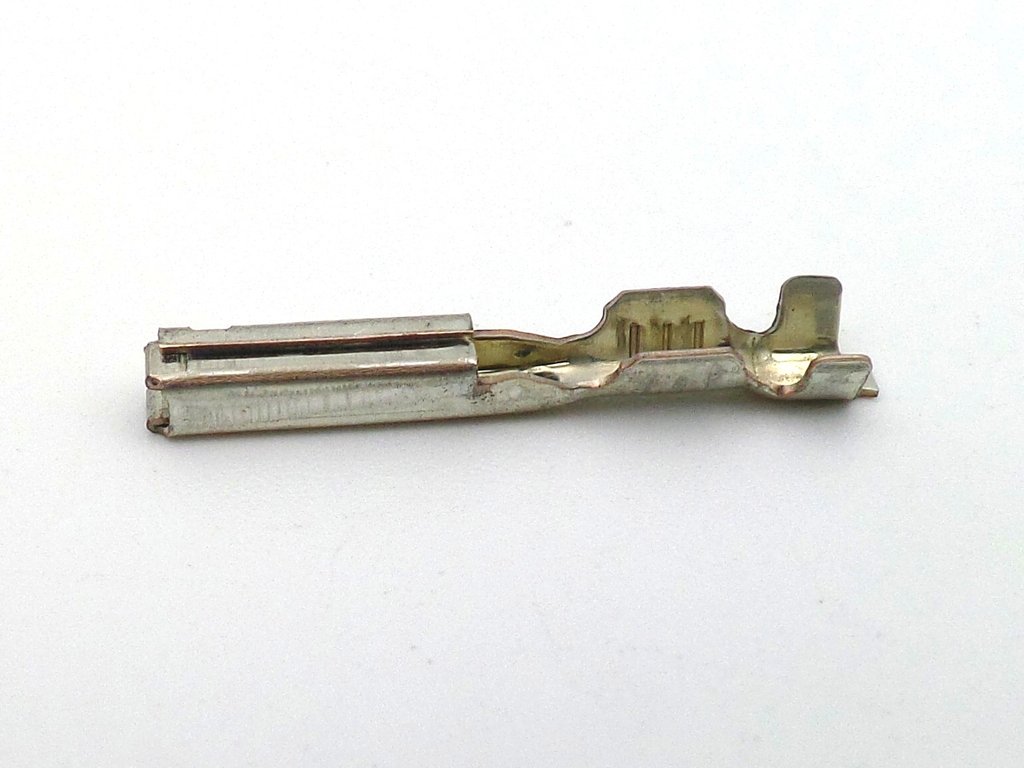

Terminals: 0.5mm2 to 0.75mm2 cable
Used on Bosch Drive by Wire throttle body motor TPS throttle postition sensor ans MAF .

Connector Sizes:

Length: 31mm

Width: 24.5mm

Height: 19.5mm

All measurement Approx.

Known Fitments:

MAKE & MODEL

YEARS

CITROEN C2 C3 Xsara 1.4 HDI

CITROEN Relay 2.2 HDI

FIAT DUCATO Multijet 100 2.2D

FORD GALAXY 1.8, 2.0, 2.2 TDCi

2006 onwards

FORD MONDEO MK3 MK4 1.8, 2,2 TDCi

2007 onwards

FORD S MAX 1.8, 2.0, 2.2 TDCi

2006 onwards

FORD TOURNEO CONNECT 1.8 TDi, Turbo Di, TDCi

2006 onwards

FORD TRANSIT MK7 2.2, 2.4, 3.2 TDCi

2006 onwards

FORD TRANSIT CONNECT 1.8 TDCi, Di

2006 onwards

FORD TRANSIT CONNECT 1.8 Di, DI

2006 onwards

FORD TRANSIT TOURNEO 2.2 TDCi

2007 onwards

LAND ROVER DEFENDER 2.2 TD4

LAND ROVER DEFENDER 2.4 TD4

LAND ROVER FREELANDER 2 2.2 TD4

PEUGEOT BOXER 2.2 HDI

VOLVO S80 2.0 TDi

Mating Half: 6W-MAL-MAF-CONN
