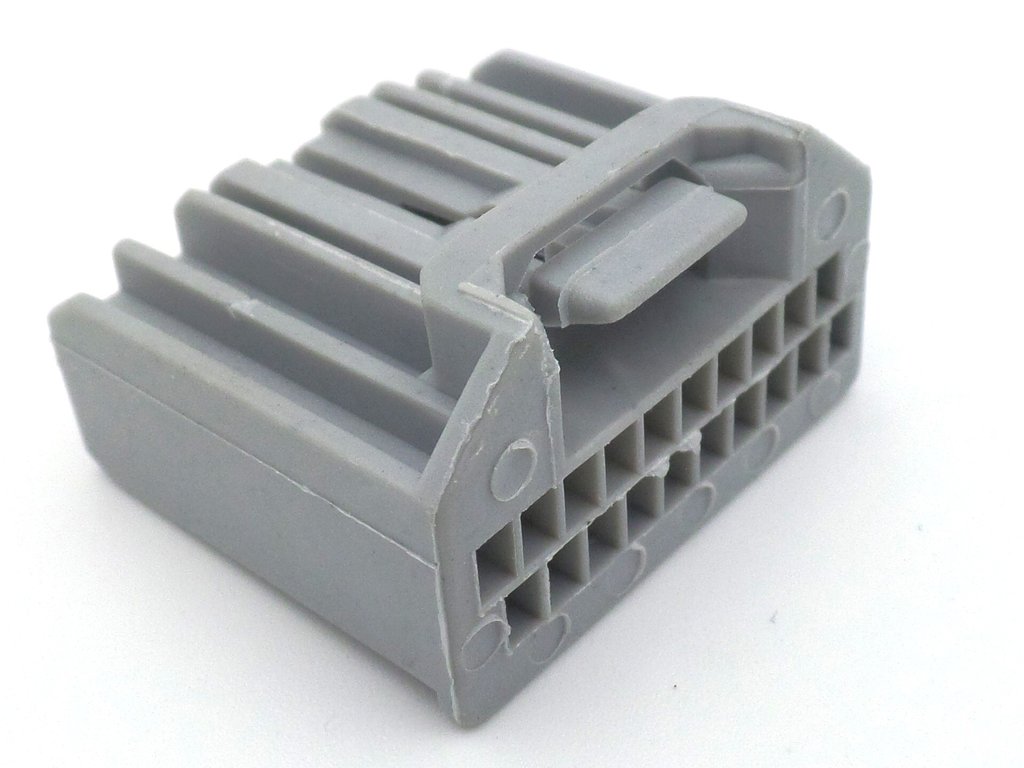

Connector 20 Way Yamaha Grey Speedo Wiring Loom Harness B-6

Connector 20 way Yamaha / Suzuki grey speedo clocks wiring loom plug. This connector is fitted to the main loom side of the harness.

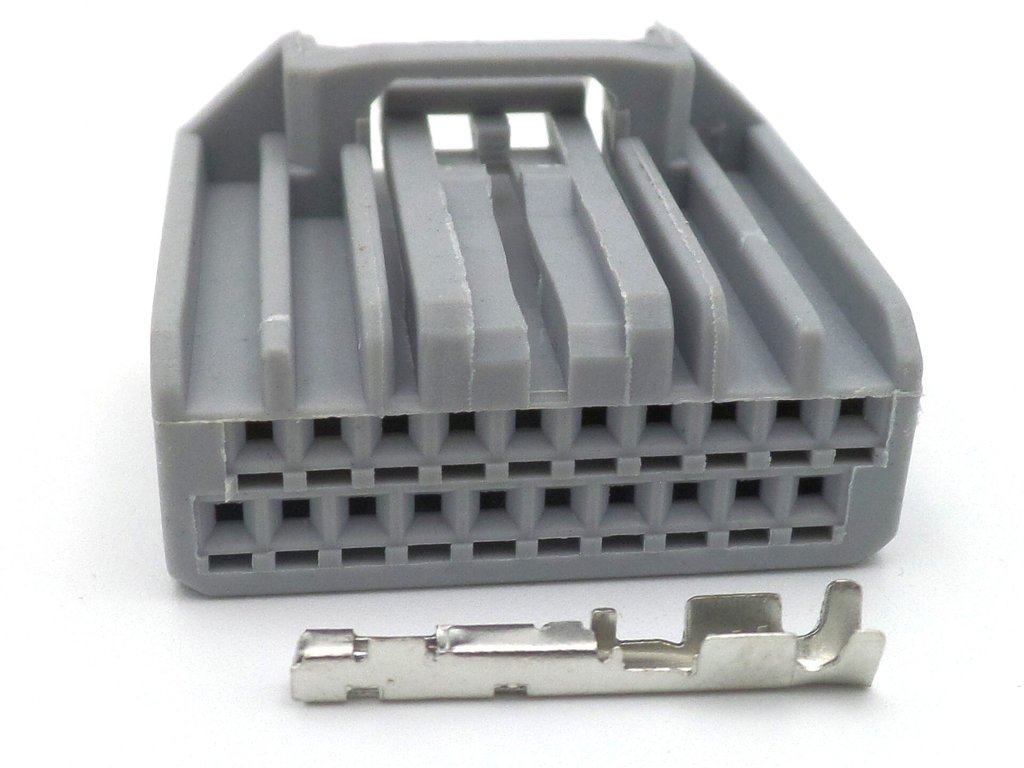

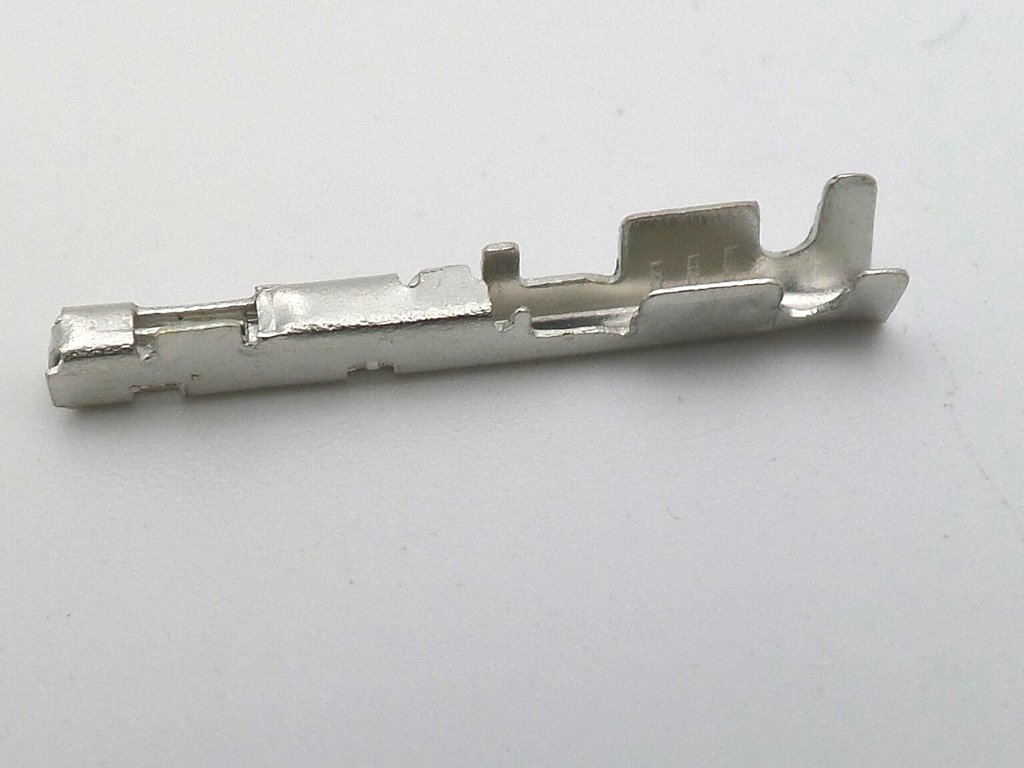

20 female terminals over 2 rows
Known Fitments:
FJR1300, later GSXR’s
Mating Half: No mating half, fits directly to circuit board header

Dimensions: Length: 22mm, Width: 25.5mm, Height: 10.5mm (15mm including locking latch)

All measurements approx.
