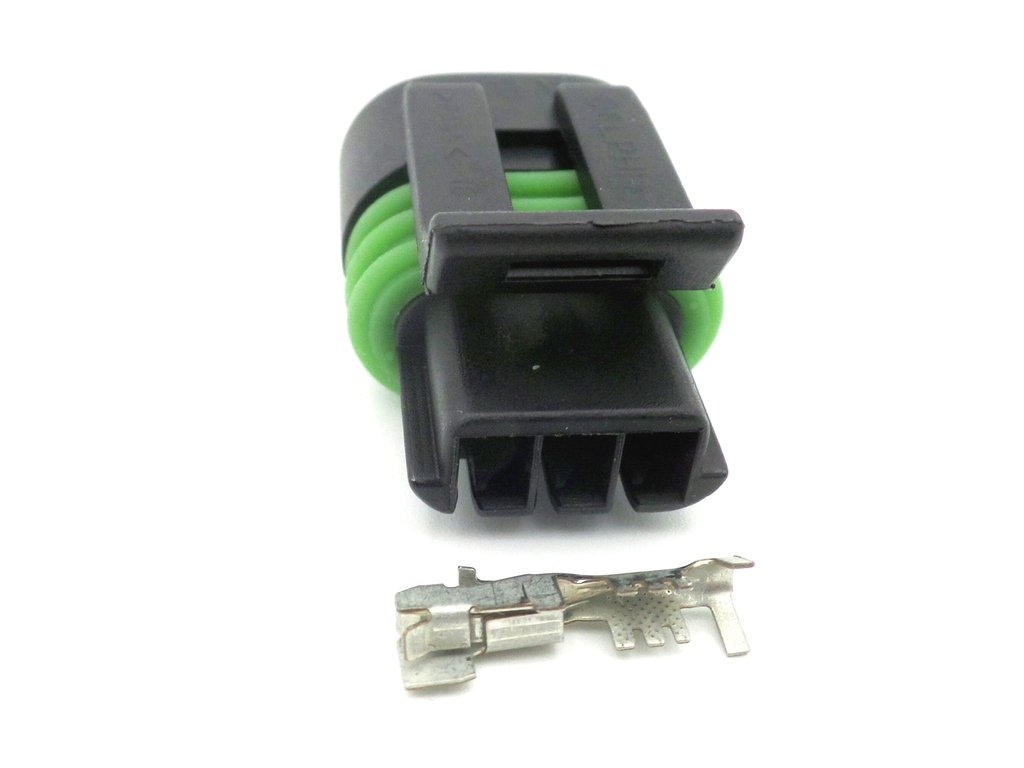

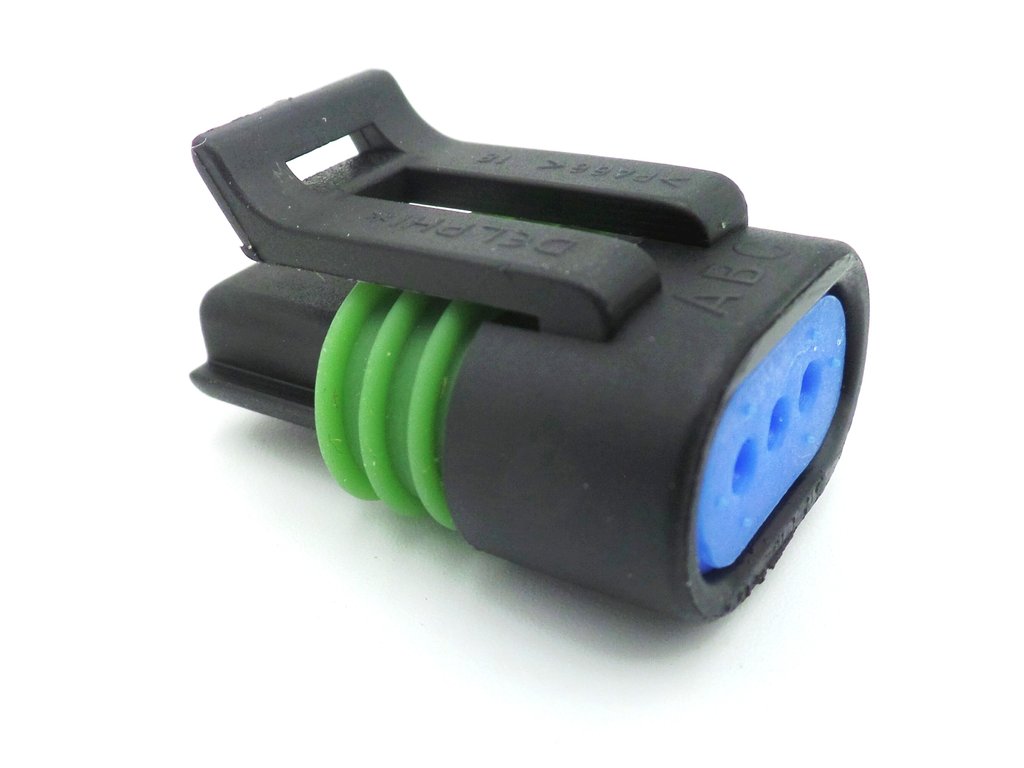

Connector Ducati 3 Way TPS Ignition Coil Wiring Plug

Connector, Metri-Pack 3 Way Green or Blue seal 150 pull to seat Series. Used on some Ducati throttle position sensors and other components on cars and motorcycles
Fits Ducati Sensors with PF1C or CTS
Also used on mercruiser and other marine engine wiring harness connections
3 way 150 series weatherproof automotive and marine wiring connector complete with female terminals
Rated up to 14 amps.
Specifications

• Cable range: 0.35 – 1.00 mm2
• Current range: 0 – 14 amps
• Temp range: -40 – 125 °C
• Resistance: <10mΩ @ 20mV
• Voltage drop: <10.0 mV/amp
• Centerline spacing: 6.0 mm
• Blade width: 1.5 mm

Typical Applications

The GT Connection System is suitable for in-line, device, header or bulkhead vehicle applications.

GT 150 Pull to Seat Female Sealed connectors available with 3.5 mm centerline spacing and various indexing capabilities. The 3.5 mm centerline spacing (vs. standard 4.5 mm) enables mating to existing devices like sensors.
