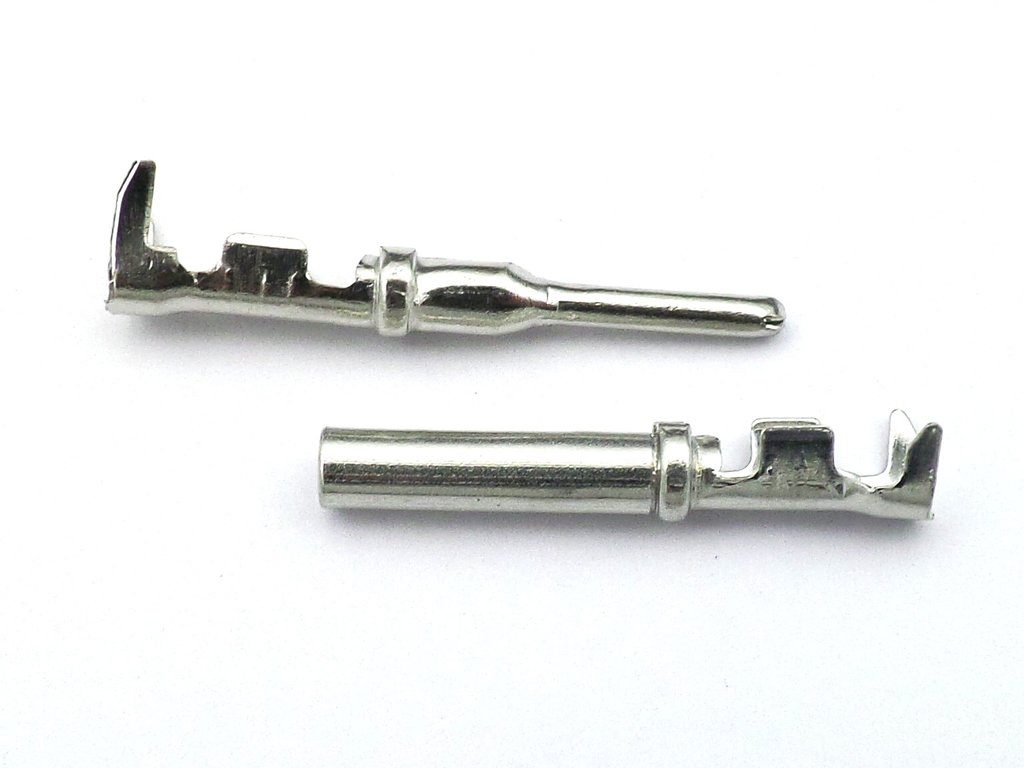

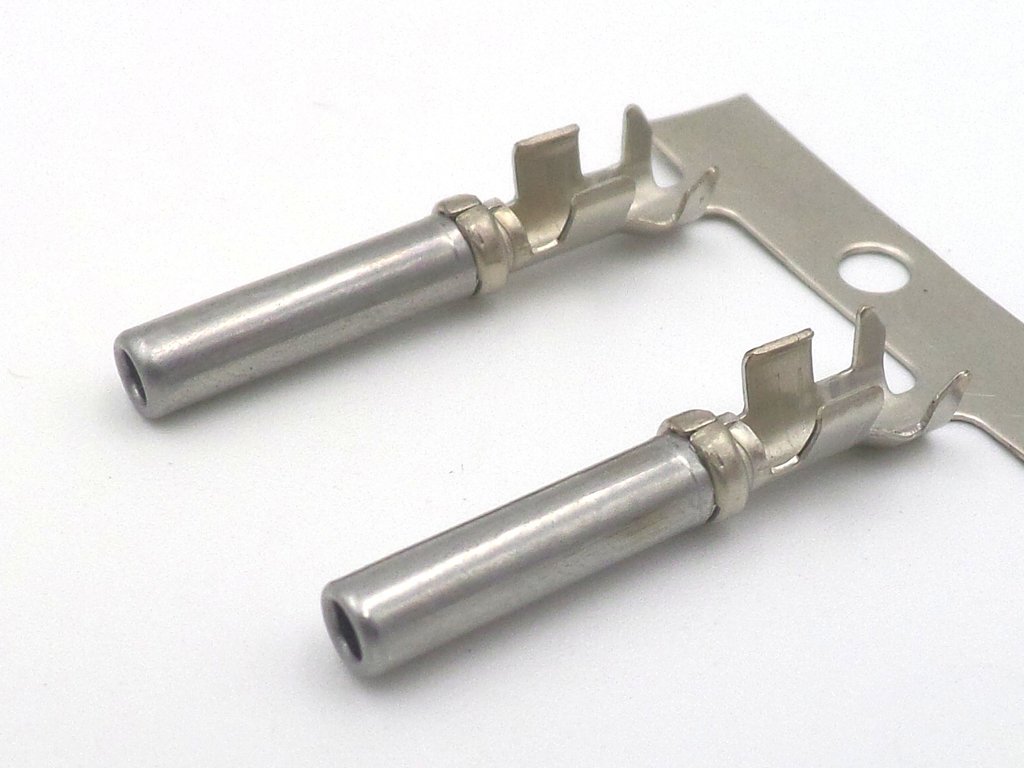

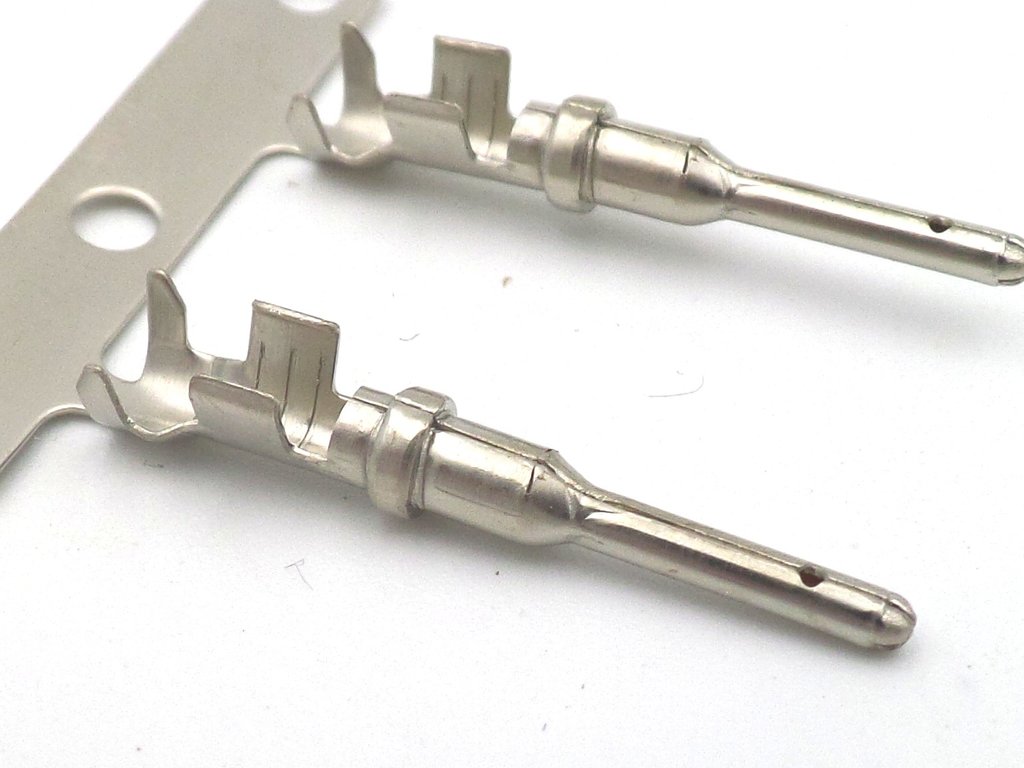

Connector, DT type of environmentally sealed connectors which are designed specifically for harsh environment cable to cable applications. Thermoplastic housings and silicone seals are used to allow the connector to withstand conditions of extreme temperature and moisture. Rated at IP 68. Supplied with “W” shaped crimps

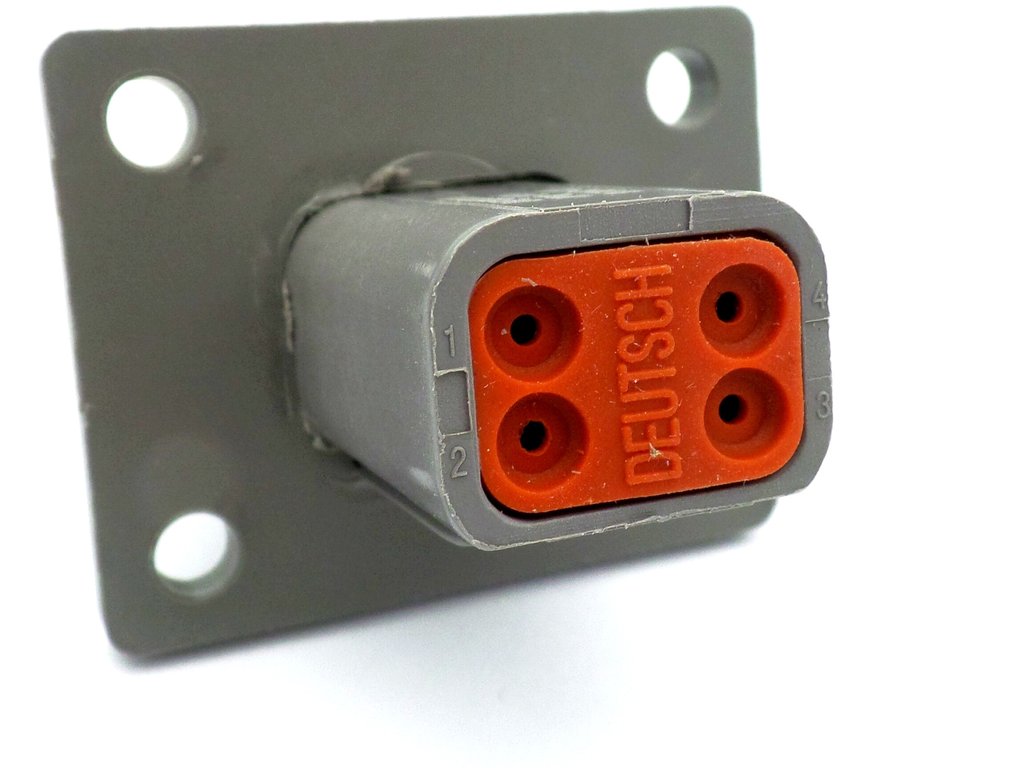

Recepticle Dimensions: Length: 44mm, Width: 32mm, Height: 41mm including mounting plate

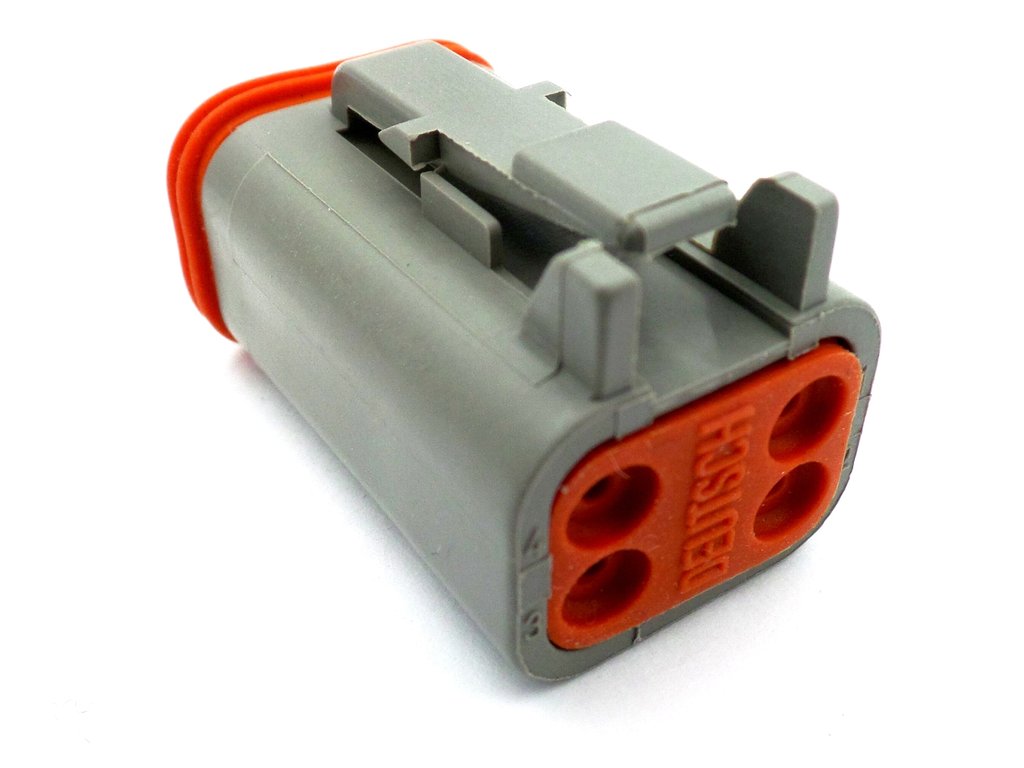

Plug Dimensions: Length: 31mm, Width: 18mm, Height: 20mm including locking latch
4 Way Sealed
Connector DT 4 Way Bulk Head Wiring Loom K-30
£ 7.90

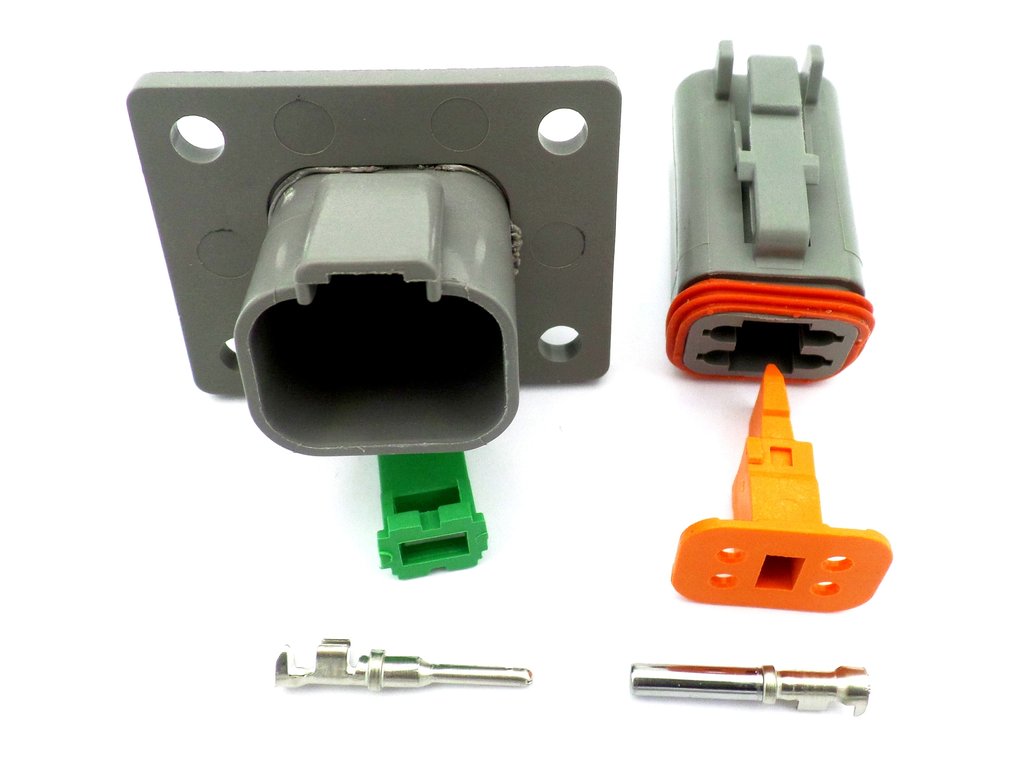

Connector, 4 way male panel mount plus female sealed plug set with 0.5mm – 1.0mm terminals, IP68 rating and 13 amps DT04-4P-L012.
Availability: 1 in stock
| Weight | 0.045 kg |
|---|---|
| 0.5mm Mixed Tracer colours 3 | |
| 0.5mm Tracer 1 Mixed Colours | |
| 0.5mm Tracer Mixed Colours 2 | |
| 0.75mm Tracer Colours 1 | |
| 0.75mm Tracer Colours 2 | |
| 1.5mm Tracer Colours | |
| Black Tracer | |
| Blue Tracer | |
| Brown Tracer | |
| Colour | |
| Green Tracer | |
| Grey Tracer | |
| Light Green Tracer | |
| Orange Tracer | |
| Pink Tracer | |
| Purple Tracer | |
| Red Tracer | |
| White Tracer | |
| Yellow Tracer |
Reviews
There are no reviews yet.
