Connector used on some Ducati idle air valve and pre 2005 PRT05 air pressue and temperature sensors and other some other components on cars and motorcycles
Other Fitments:
GM ignition coil module on 93-97 LT1
GM idle air control (IAC) motor 94
GM distributor on TBI/TPI
GM ignition coil on 4.8, 5.3, 6.0L
Also used on Mercruiser and other marine engine wiring harnesss.

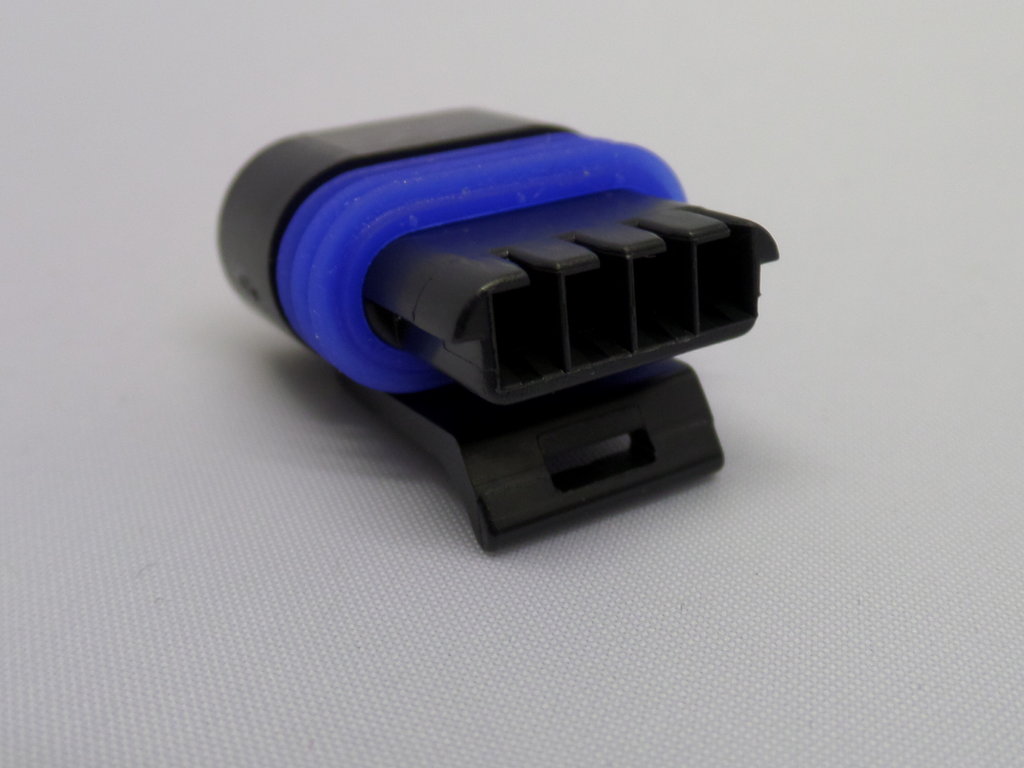

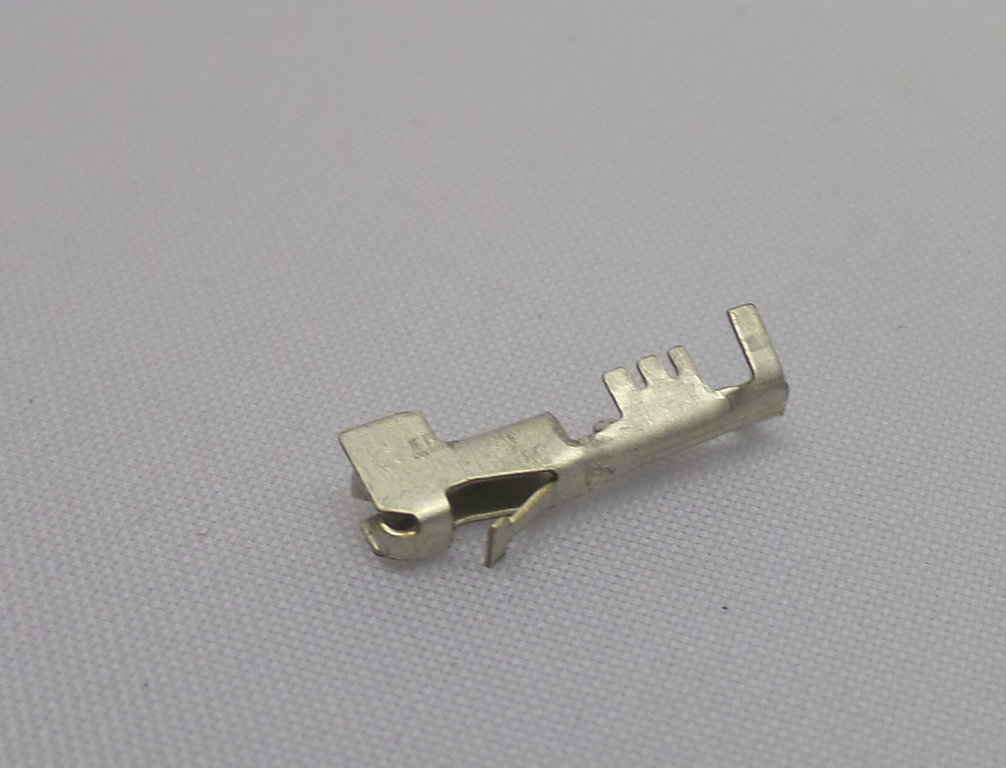

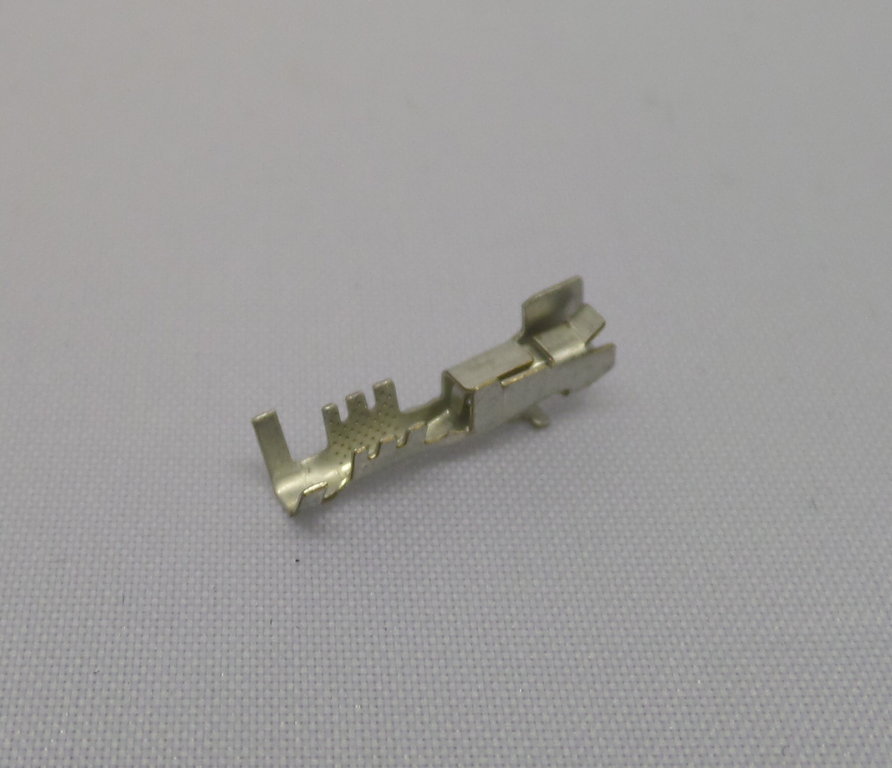

4 way 150 series weatherproof automotive and marine wiring connector complete with female terminals
Rated up to 14 amps.
No mating half for this connector as it plugs directly into component.
Specifications
- Cable range: 0.35 – 1.00 mm2
- Current range: 0 – 14 amps
- Temp range: -40 – 125 °C
- Resistance: <10mΩ @ 20mV
- Voltage drop: <10.0 mV/amp
- Centerline spacing: 6.0 mm
- Blade width: 1.5 mm
Typical Applications
The GT Connection System is suitable for in-line, device, header or bulkhead vehicle applications.
GT 150 Pull to Seat Female Sealed connectors available with 3.5 mm centerline spacing and various indexing capabilities. The 3.5 mm centerline spacing (vs. standard 4.5 mm) enables mating to existing devices like sensors.
