£ 9.29
Large A3 (12″ x 16″) laminated colour wiring diagrams for Royal Enfield Bullet 350cc & 500cc Regular Spec with engine kill switch. Separate rectifier and regulator, 8 wire ignition switch. Ammeter fitted.
Availability: 97 in stock
Royal Enfield Bullet 350cc & 500cc Regular Spec early model full colour laminated wiring diagram

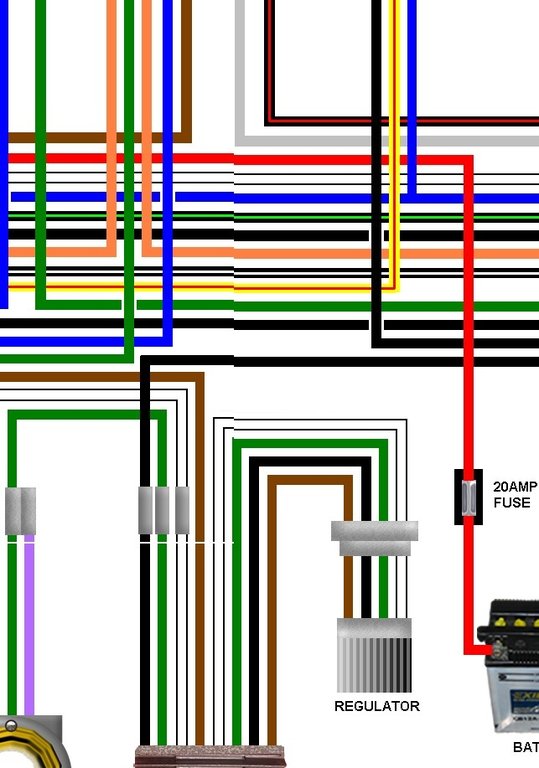

Pictures displayed are taken from various diagrams and are not indicative of any particular models.
Separate rectifier and regulator, 8 wire ignition switch. Ammeter fitted.
Designed to be used in conjunction with a black and white factory wiring diagram (not supplied)
| Weight | 0.103 kg |
|---|---|
| 0.5mm Mixed Tracer colours 3 | |
| 0.5mm Tracer 1 Mixed Colours | |
| 0.5mm Tracer Mixed Colours 2 | |
| 0.75mm Tracer Colours 1 | |
| 0.75mm Tracer Colours 2 | |
| 1.5mm Tracer Colours | |
| Black Tracer | |
| Blue Tracer | |
| Brown Tracer | |
| Colour | |
| Green Tracer | |
| Grey Tracer | |
| Light Green Tracer | |
| Orange Tracer | |
| Pink Tracer | |
| Purple Tracer | |
| Red Tracer | |
| White Tracer | |
| Yellow Tracer |
