Connector Honda 6 Way Male HW Series Wiring Loom 2.3mm B-3

Name: Connector Honda 6 Way Male HW Series Wiring Loom 2.3mm B-3
Brand: Aftermarket
SKU: 6W-HW-MAL_CONN
Availability: InStock

£ 5.49

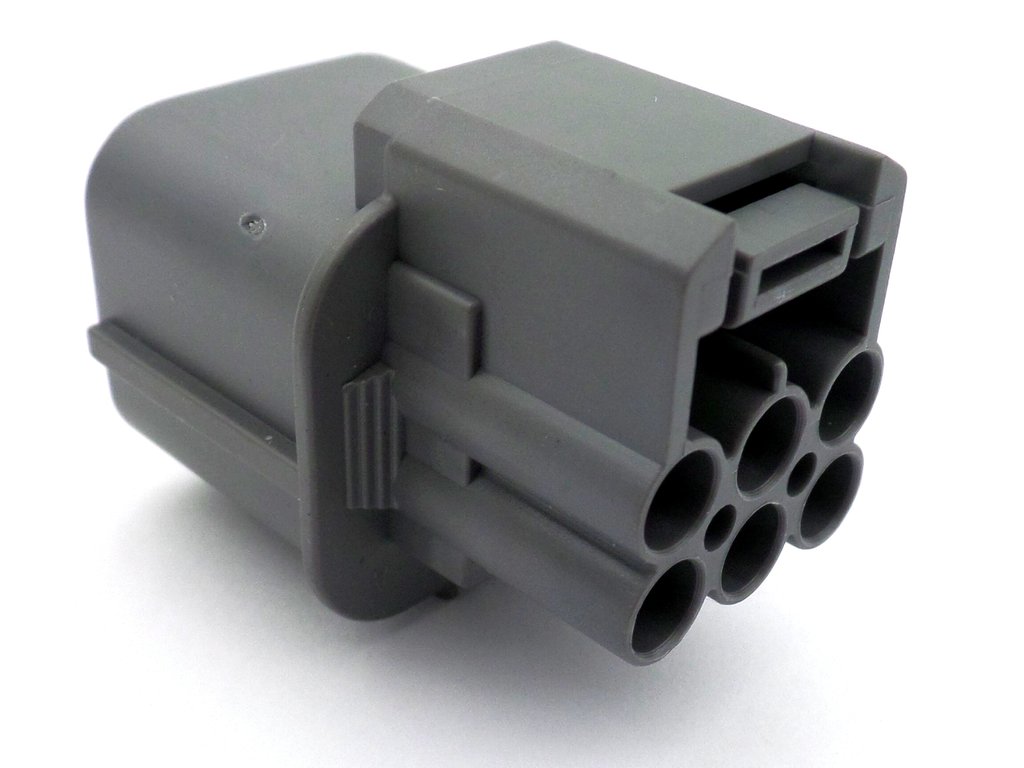

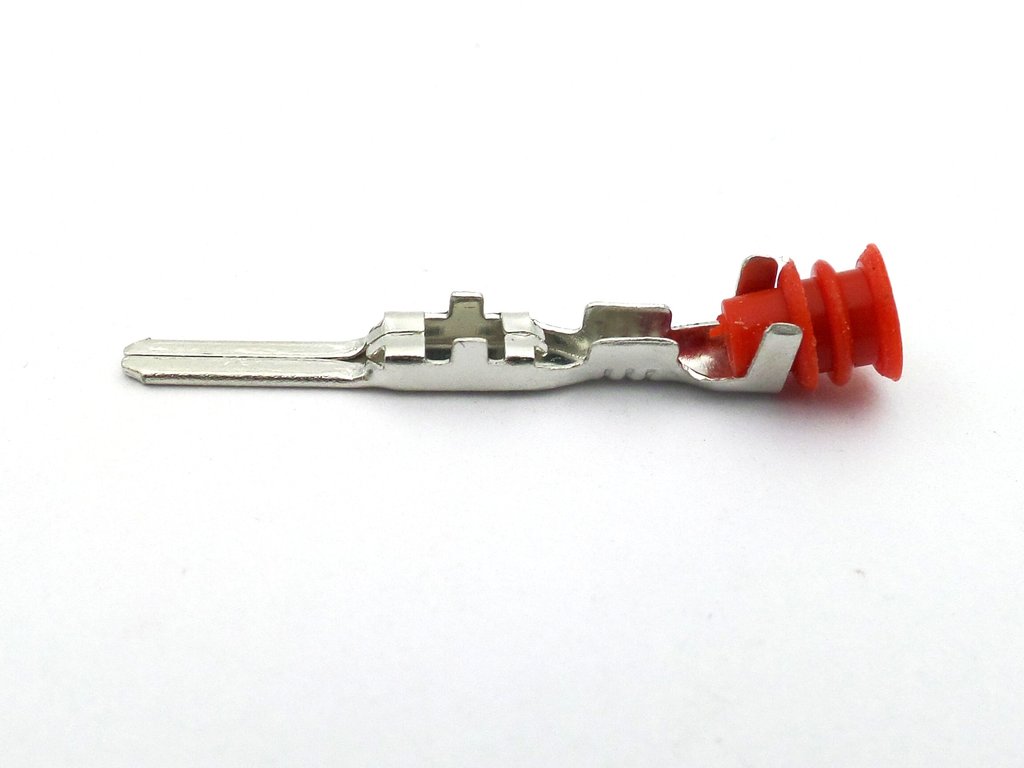

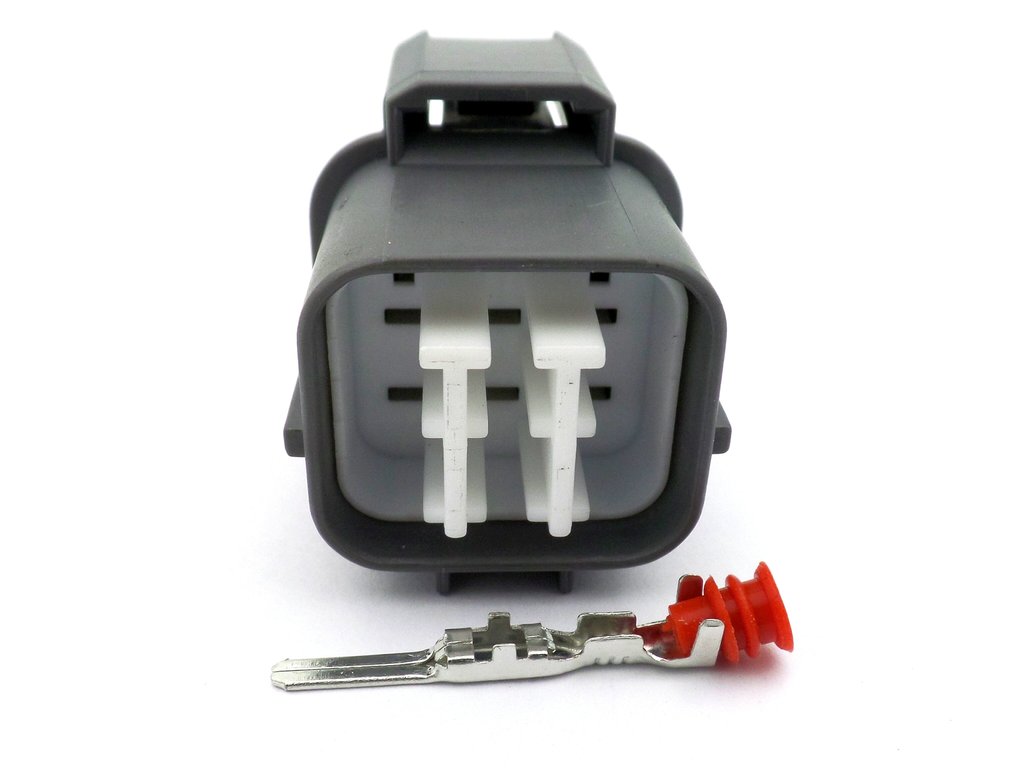

Connector Honda FC6 6 way HW series male sealed wiring harness plug supplied with 6 x terminals, cable locks and seals

Availability: 2 in stock

Connector Honda 6 way female HW series sealed wiring plug supplied with terminals, cable seals and white terminal lock

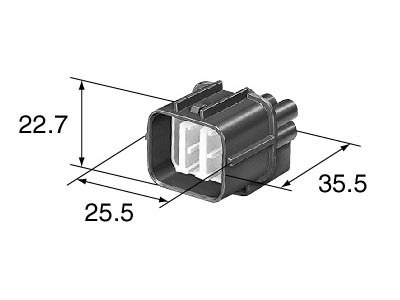

Recepticle Sizes:

Length: 35.5mm
Width: 25.5mm including keyways
Height: 22.7mm including latch
Mating Half: 6W-HW-FEM_CONN

All dimensions approx.

Used on some Honda motorcycle rear light clusters like F6C model.

Weight	0.025 kg
