Large A3 (12″ x 16″) laminated colour wiring diagrams for Honda GL1500 1988 – 1989 Goldwing UK spec motorcycles
Out of stock
Honda GL1500 Goldwing Wiring Diagrams UK Spec full colour laminated wiring diagrams
7 x A3 wiring diagrams in the set for:
Lighting Circuit
Ignition Circuit
Starter/Reverse Circuit
Auto Cruise Circuit
Audio Circuit
Fuel Circuit
Charging System

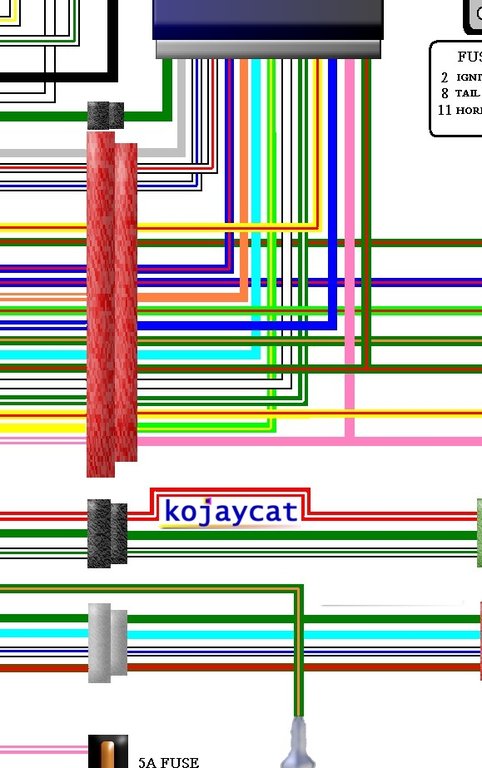

Pictures displayed are taken from various diagrams and are not indicative of any particular models.
Designed to be used in conjunction with a black and white factory wiring diagram
