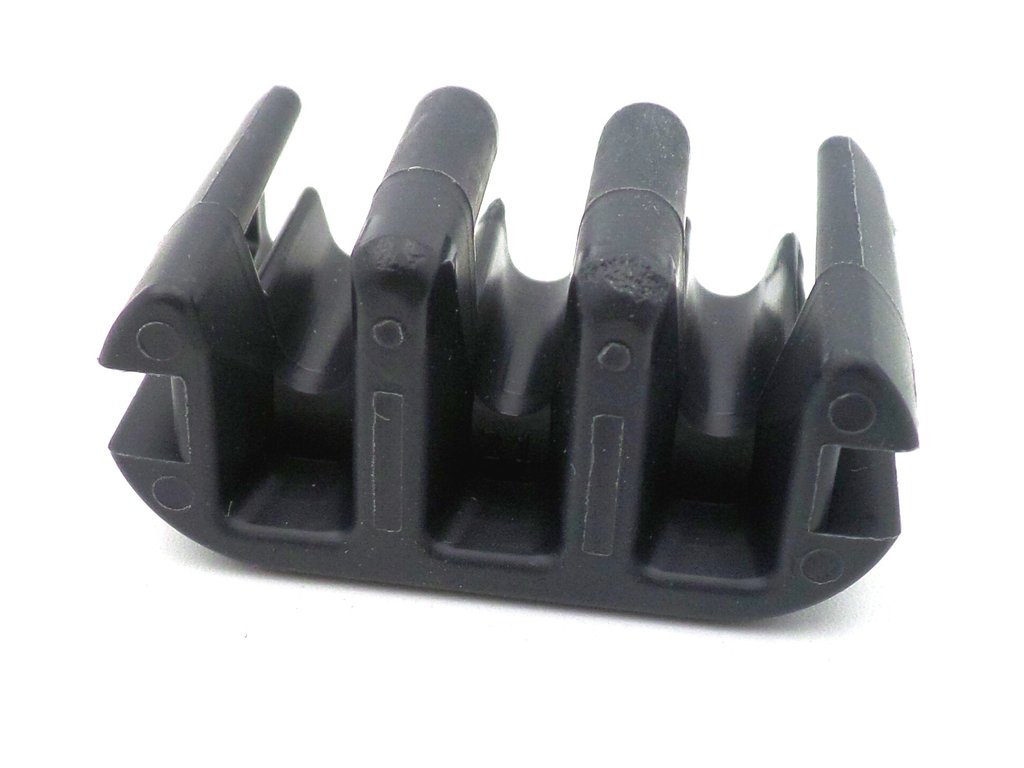

Connector TPA Metri-Pack 280 Black Lock
3 way 280 series weatherproof automotive and marine wiring connector
Stops the cable being pulled from the rear of the female connector. Male part of the connector uses the cream TPA lock.
One of each part required for each 3 way 280 series connector.
280 Series Spec
Cable Range Sealed 0.35mm² – 5.0mm²
Current Range 0 – 30 Amps
Temperature Range -40oC to +125oC
Resistance <10m ohms @20mV
Voltage Drop <3.0mV/Amp
Centre Line Spacing 7.7mm
Blade Width 2.8mm
