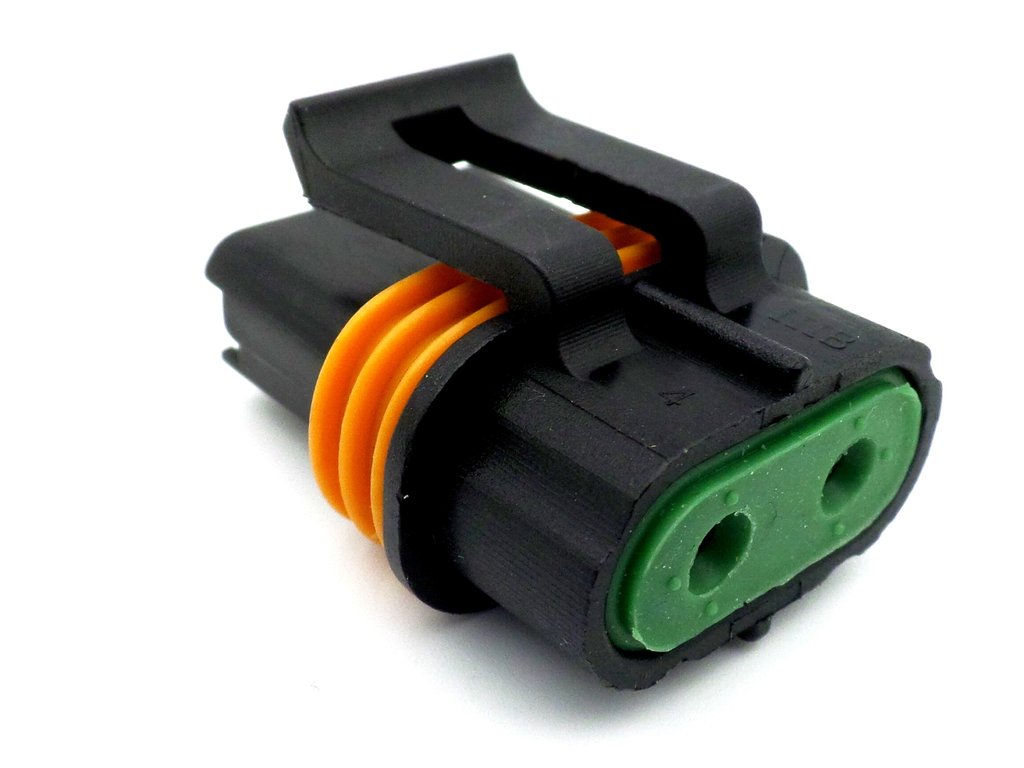

Connector Metri Pack 630 2 Way 2.5 - 3.5mm terminals K-16 - Image 2

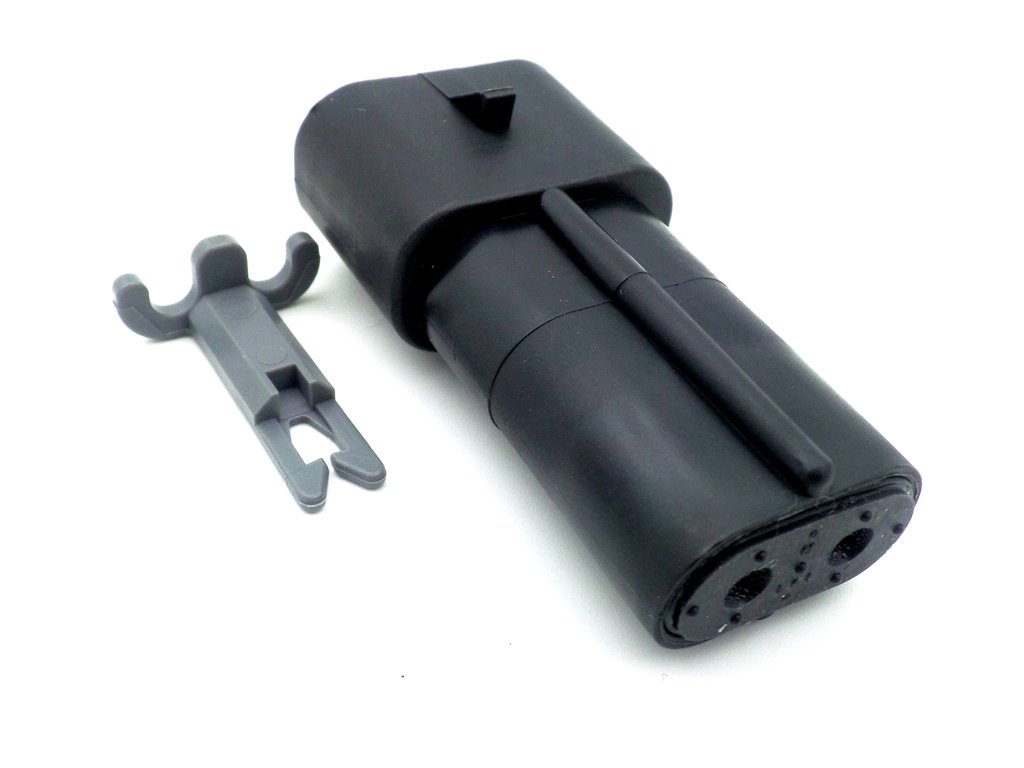

Connector Metri Pack 630 2 Way 2.5 - 3.5mm terminals K-16 - Image 3

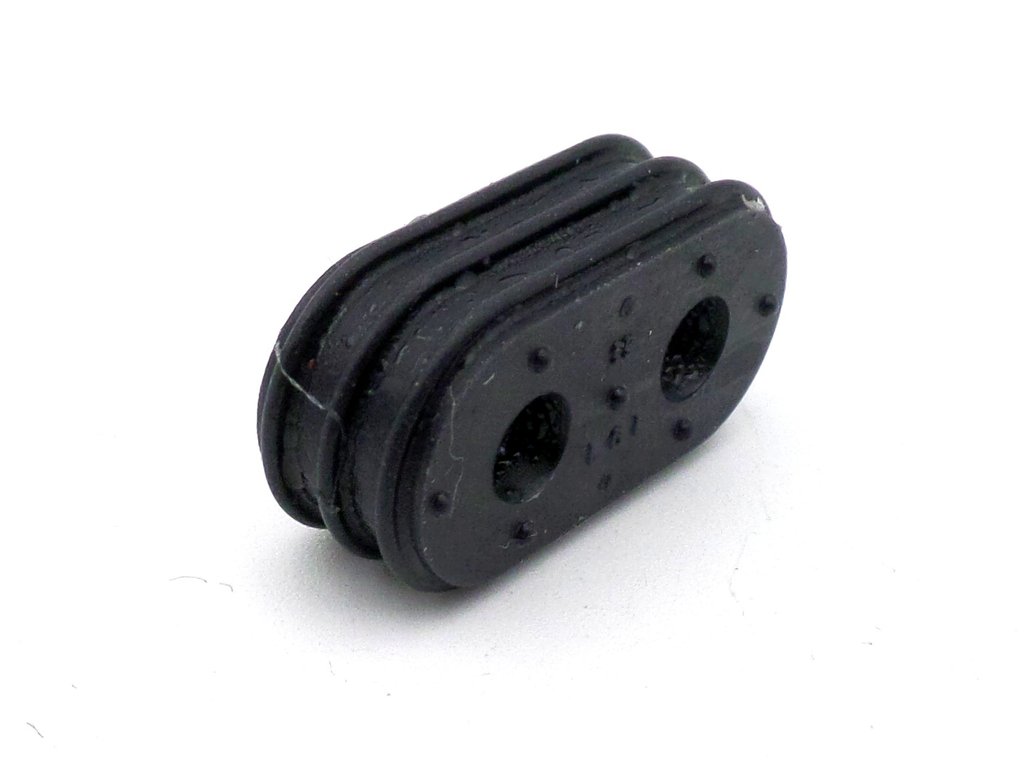

Connector Metri Pack 630 2 Way 2.5 - 3.5mm terminals K-16 - Image 4

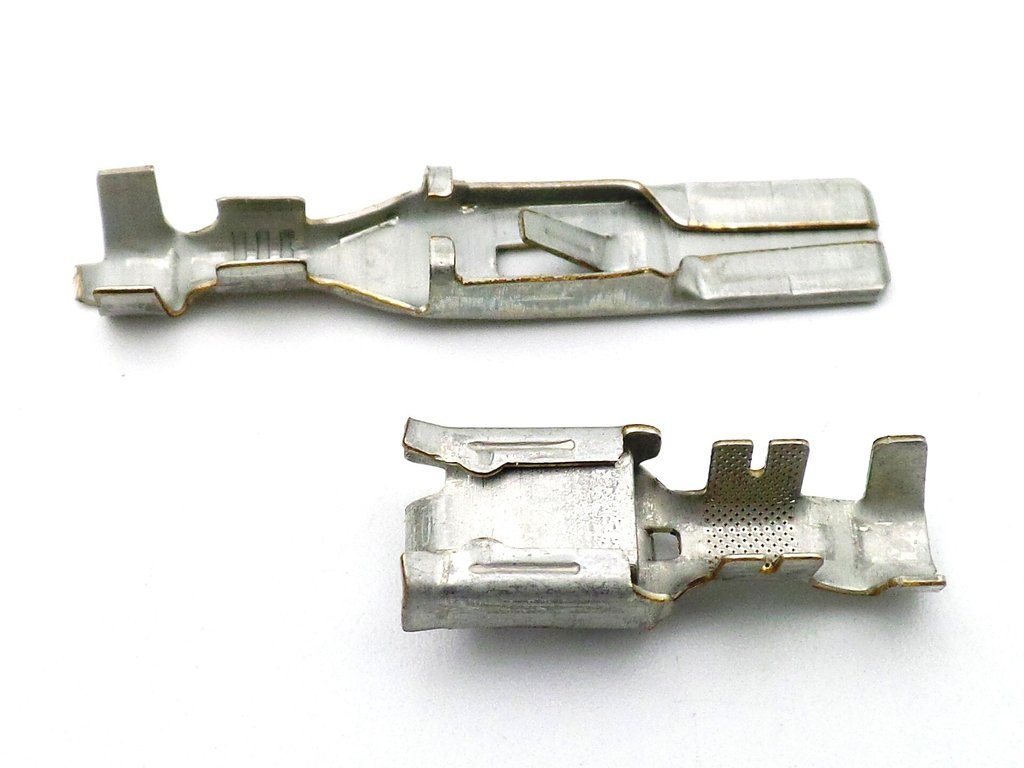

Connector Metri Pack 630 2 Way 2.5 - 3.5mm terminals K-16 - Image 5

Connector Metri Pack 630 2 Way 2.5 – 3.5mm terminals K-16

£ 7.55

Connector 630 Series Metri-Pack 2 way plug set rated at 46 amps with 2.5mm² – 3.5mm² terminals, seals and TPA lock.

Out of stock

SKU: 630-2WAY-CONN Category: Tags: , , , , , , , , , , , , , Brand:

Connector 630 Series Metri-Pack 3 Way plug Rated at 46 Amps.

Temperature Range: -40oC to +125oC

Terminals: 3.5mm – 5.0mm cable size
Seal Colour: Green and Black

630 Series Spec
Cable Range Sealed 0.35mm² – 5.0mm²
Current Range 0 – 46 Amps
Temperature Range -40oC to +125oC
Resistance <10m ohms @20mV
Voltage Drop <3.0mV/Amp
Centre Line Spacing 10.8mm
Blade Width 6.3mm

Weight 0.025 kg
