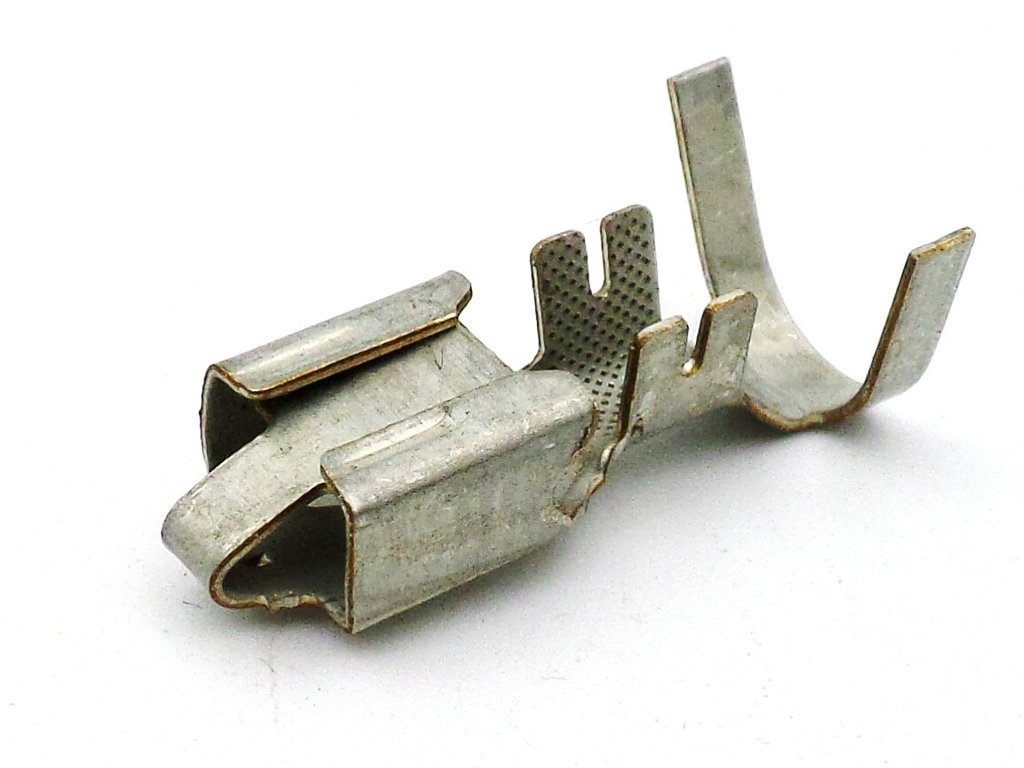

Terminal Metri Pack 630 3 Way Female Connector 4.0mm
Terminal Metri Pack 630 3 Way Female Connector 4.0mm - Image 2

Terminal Metri Pack 630 3 Way Female Connector 4.0mm

£ 0.54

Terminal 630 Series Metri-Pack weatherproof connector female tinned pins suitable for 4.0mm2 cable. 12052456-L

Availability: 45 in stock

SKU: 630-3W-Fem-Term Category: Tags: , , , , , , , , , , , , Brand:

Terminal 630 Series Metri-Pack connector tinned female

Temperature Range: -40oC to +125oC

Terminals: No Terminal
Cable Size, 12 awg, 4.0mm²

630 Series Spec
Cable Range Sealed 0.35mm² – 5.0mm²
Current Range 0 – 46 Amps
Temperature Range -40oC to +125oC
Resistance <10m ohms @20mV
Voltage Drop <3.0mV/Amp
Centre Line Spacing 10.8mm
Blade Width 6.3mm

Weight 0.008 kg
