Large A3 (12″ x 16″) laminated colour wiring diagrams for older Royal Enfield Bullet 350cc & 500cc motorcycles. Separate rectifier and regulator. 6 or 7 wire ignition switch with 2 blue wires. Ammeter fitted
Availability: 96 in stock
Royal Enfield Bullet 350cc & 500cc early models full colour laminated wiring diagram

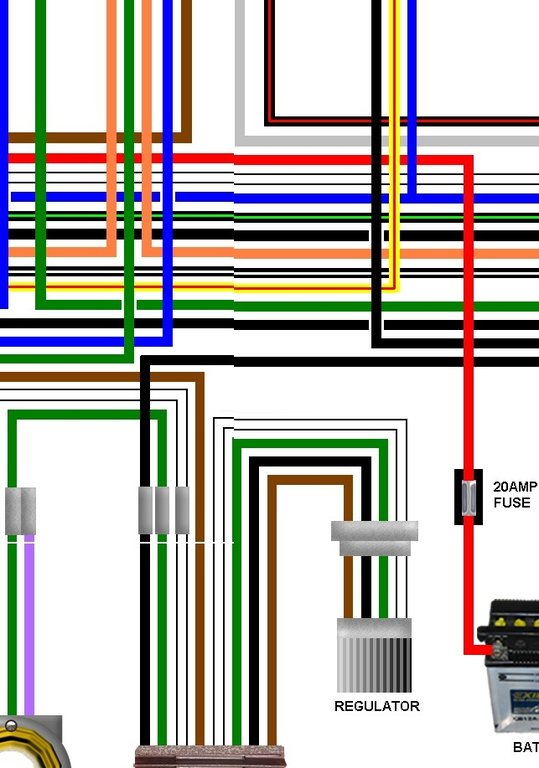

Pictures displayed are taken from various diagrams and are not indicative of any particular models.
Separate rectifier and regulator. 6 or 7 wire ignition switch with 2 blue wires. Ammeter fitted
Designed to be used in conjunction with a black and white factory wiring diagram (not supplied)
Check your model with us to see if it is covered by this diagram.
