Large A3 (12″ x 16″) laminated colour wiring diagrams for Yamaha FJ1200 1991 – 1992 Non-ABS USA Spec motorcycle electrcial schematic
Availability: 100 in stock
Yamaha FJ1200 1991 – 1992 Non-ABS USA Spec
Full colour laminated wiring diagram

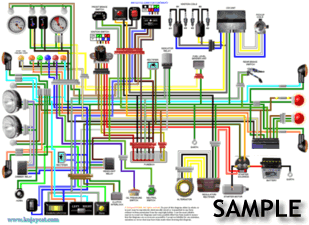

Pictures displayed are taken from various diagrams and are not indicative of any particular models.
Designed to be used in conjunction with a black and white factory wiring diagram (not supplied)
