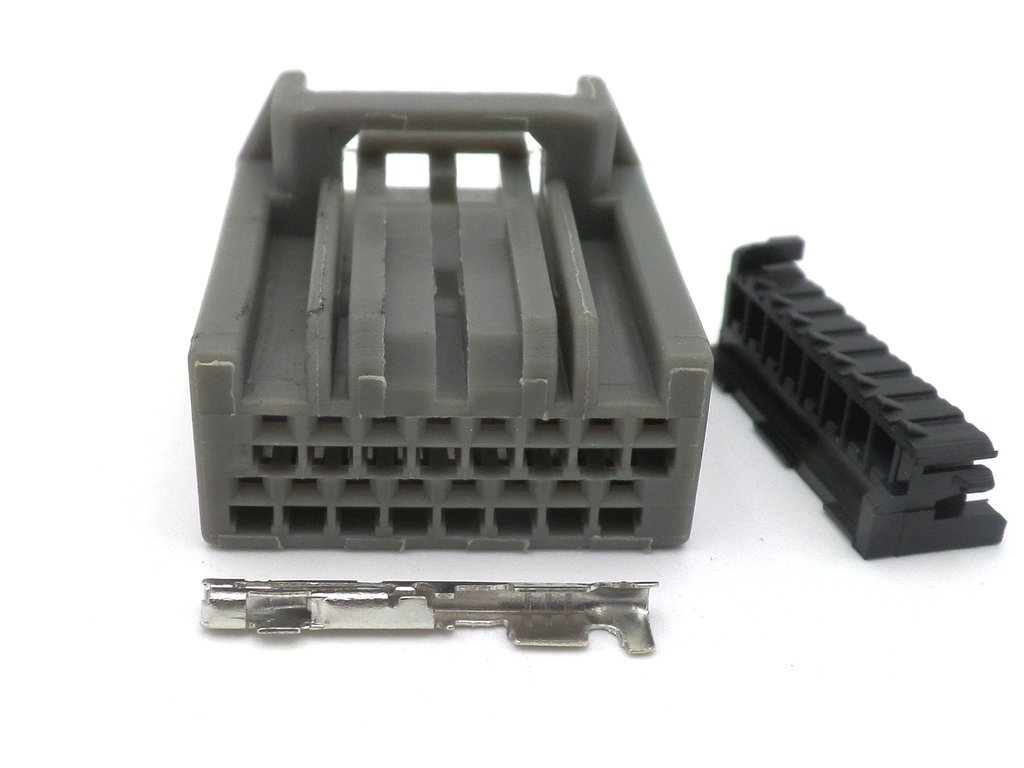

Connector 16 Way Yamaha Grey Speedo Wiring Harness Plug

Connector 16 way Yamaha grey speedo clocks wiring loom plug. This connector is fitted to the main loom side of the harness. Also used on some Honda, Kawasaki and Suzuki instrument clusters.
16 female terminals over 2 rows
Known Fitments: Yamaha YZFR125 2020-22, YZF-R890 MT09-2026 (BMM-83220-11)

Mating Half: No mating half, fits directly to circuit board header

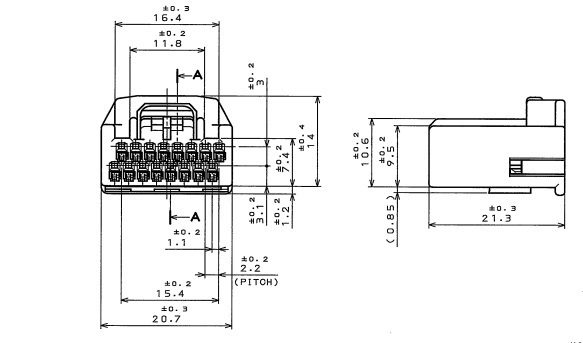

Dimensions: Length: 22mm, Width: 21mm, Height: 10.5mm (15mm including latch)

All measurements approx.

20 way version of this plug:- 20W-GREY-CLKX1

24 way version of this plug:- 24W-TRI-FEM-CLOCK-CONN

28 way version of this plug:- 28W-TFT-DASH-CON

Spare Terminals:- TERM-TFT-DASH-10P

Also available as a prewired (with black cable) connector HERE
